Spraying machine
Product Introduction

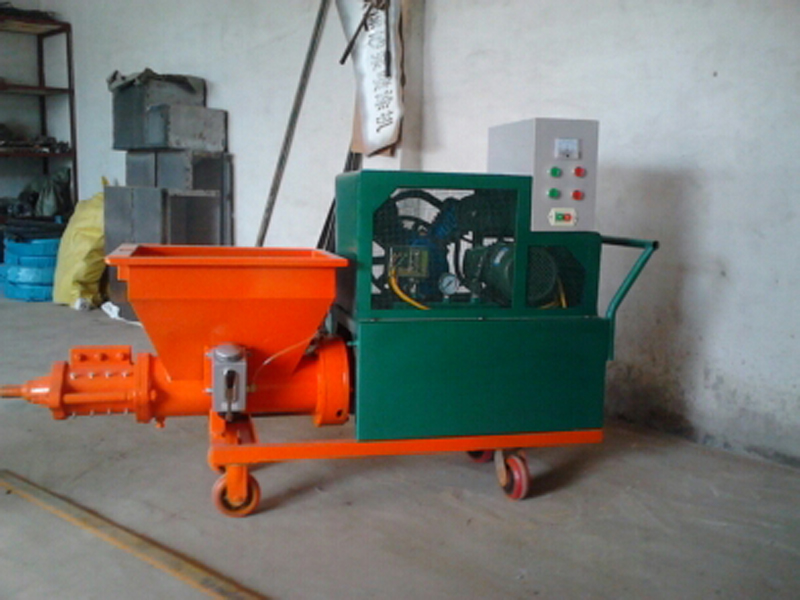

Full Automatic Cement
Mortar Spraying Machine for wall
The features of
Spraying machine:
1. High efficiency,
800 sq / day (thickness1.5cm)
2. Good quality,high
bonding, solid and strong, avoid the phenomenon of hollowing and rework.
3. Save money. A
machine with three workers, can do ten workers job (plus 10 hours work)
Mortar spraying
machine is mainly used for building the mortar products internal and external
wall, cement mortar powder coating and outside wall thermal insulation material
mortar spraying, refractory material spraying.
Main Parameter
Rated Output
|
6-85 L/min
|
Rated Working Pressure
|
3 MPa
|
Total Power
|
8.5Kw
|
Main Electric Motor
|
3Phase,380volt,5.5 Kw
|
Rev.of Rotor
|
380 RPM
|
Rated Air Output
|
250L/min
|
Water Pump Rated Output
|
700L/h
|
Max.Conveying Dist.
|
50m
|
Hopper Capacity
|
120L
|
Loading Height
|
1000mm
|
Conveying Hose ID.
|
25/32mm
|
Air Hose ID.
|
13mm
|
Overall Dimension(LxWxH)
|
1240*680*1550mm
|
Weight
|
265kg
|
